• One Mechan safety switch input
• Monitored limited inch button input
• 2 or 4 second versions
• LED and volt free contact indication
• 35mm DIN rail mounting
• 17.5 mm wide

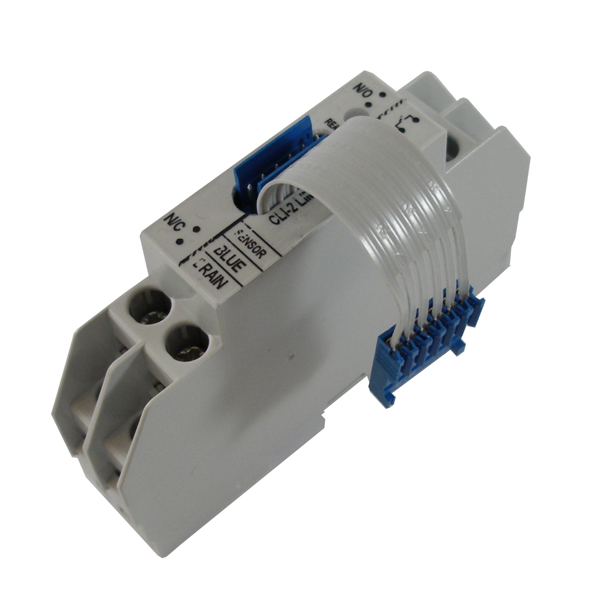

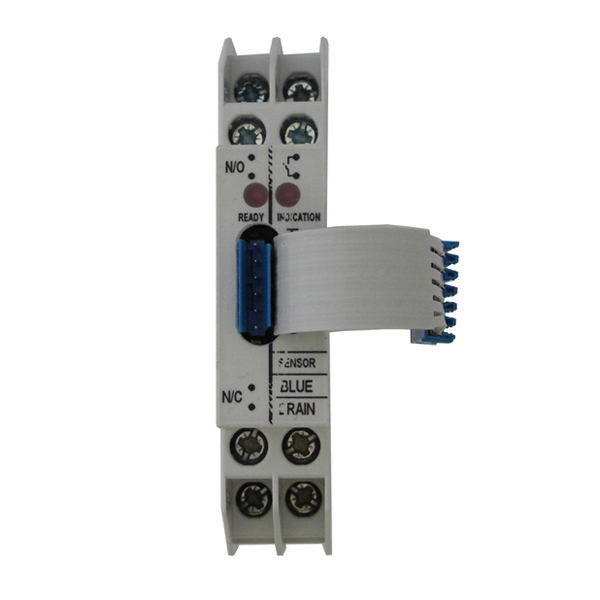

The CLI extender module provides the option of using a limited inch button control (not supplied) to override one Mechan safety switch in a CODEX safety system for a pre-set maximum time. Simple connection via a built in 6-way strap to the adjacent CODEX module, the CLI has the input for 1 Mechan safety switch and connections for the limited inch button. When fitted correctly the button can override the Mechan switch, connected to the CLI, for up to the maximum time allowed. Releasing the button or reaching the maximum allowed time re-activates the switch.
| Technical Specifications | |
|---|---|
| Construction | Grey PC-GF |
| Indication | Guard Status LED and Volt Free Contact |
| IP Rating | Housing IP40, Terminals IP20 |
| Weight | na |
| Mounting | 35mm DIN Rail |
| Power Consumption | na |
| Coding | Digital Electronic, Generic code |
| Input | 1 Codex Safety Switch + Limited Inch Button |

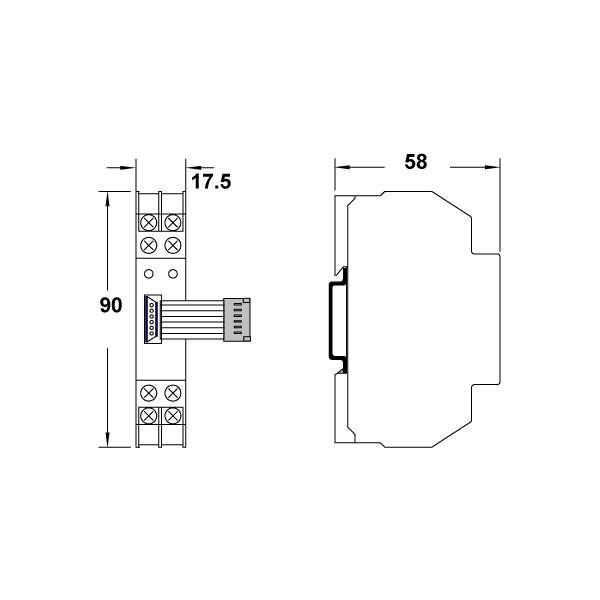

| Dimensions of Control Unit (mm) | 17.5 x 90 x 58mm |
| Environmental Specifications | |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 50°C |
| Safety Related Data | |
| PL in accordance with EN ISO 13849-1 | CAT 4 |
| SIL CL in accordance with EN IEC 62061 | |
| PFHd in accordance with EN IEC 62061 | |
| PFH | |
| B10d | |
| MTTFd | |
| TM | |
| DC | |
| SFF | |
| Notes | |
As part of a CODEX system | |
| File Title | File Name | Download File |
|---|---|---|
| MECHAN CODEX INSTALLATION GUIDE | 320-400V7-MECHAN-CODEX-INSTALLATION-GUIDE.pdf | PDF (526 KB) |
