• One Mechan safety switch input
• Monitored 2 button control input
• LED and volt free contact indication
• 35mm DIN rail mounting
• 17.5 mm wide

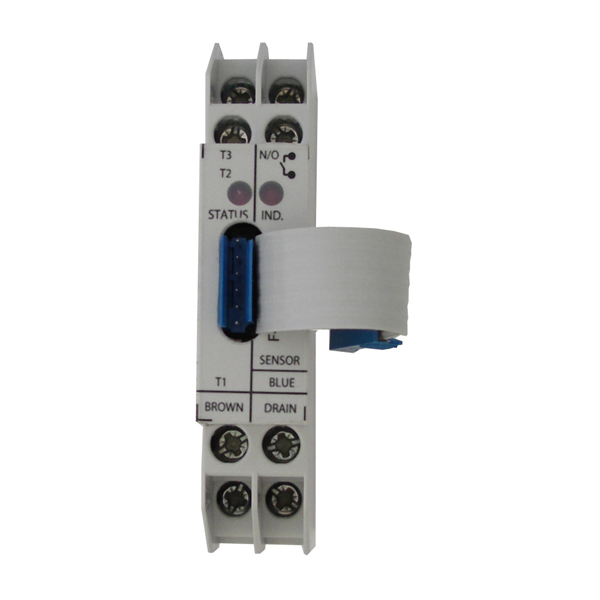

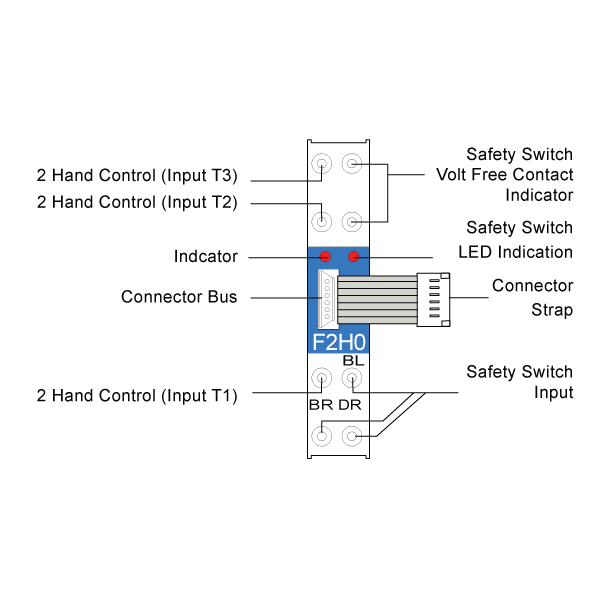

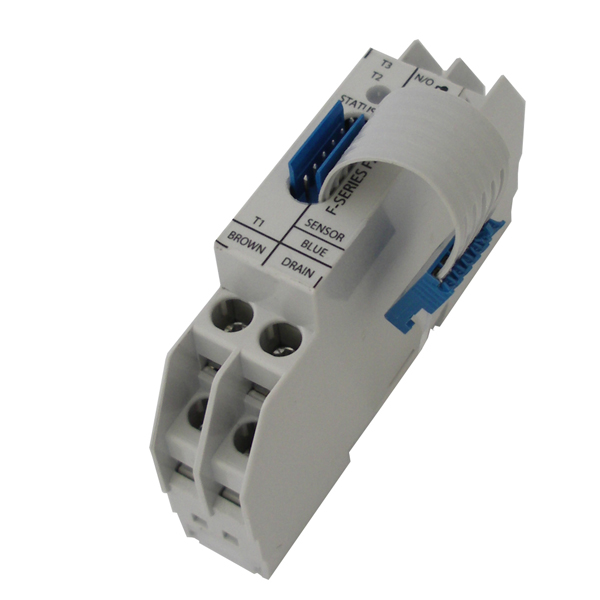

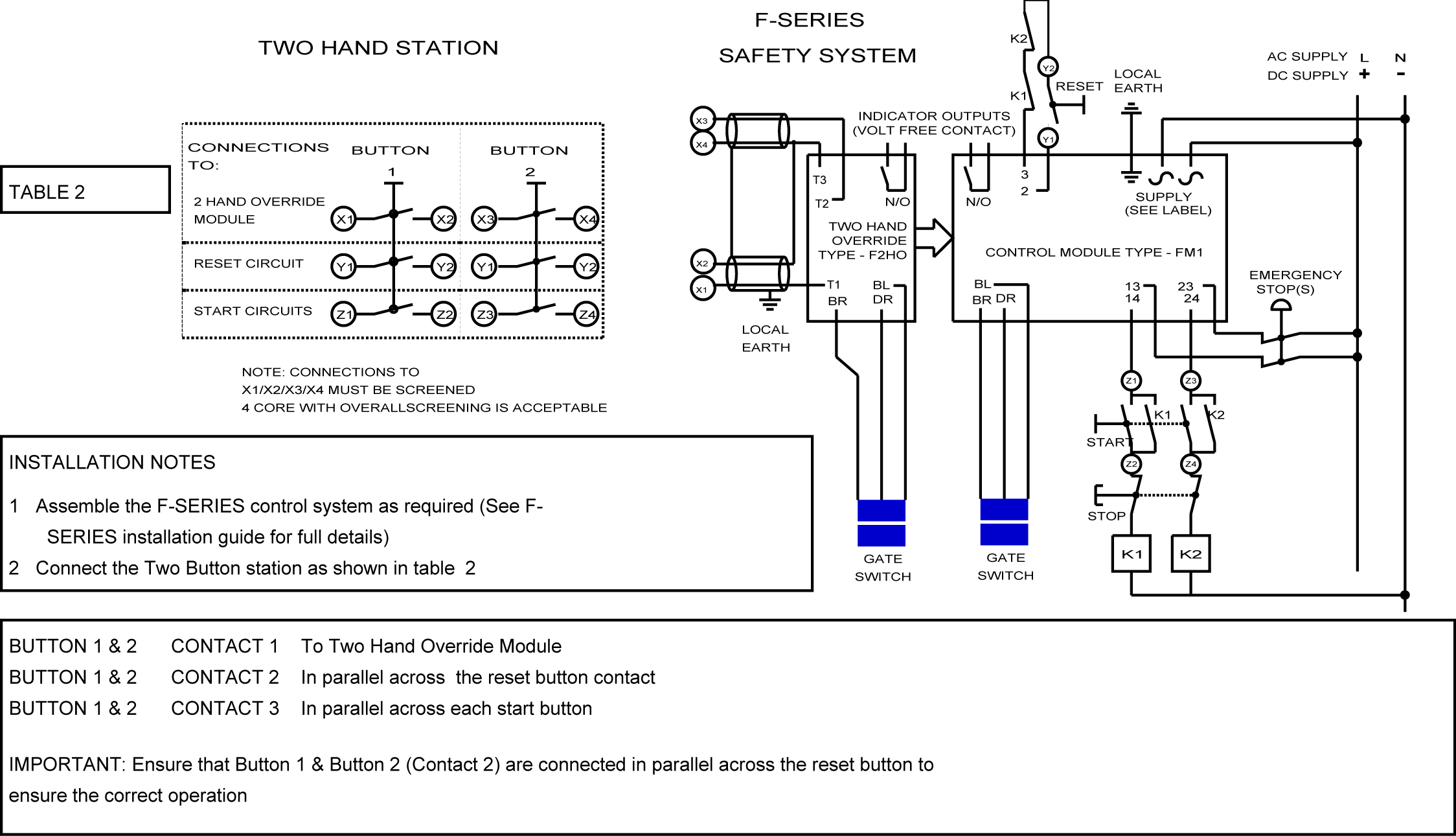

The F2HO extender module provides the option of using a 2 button control station (not supplied) to override one Mechan safety switch in an F Series safety system. Simple connection via a built in 6-way strap to the adjacent F Series module, the F2HO has the input for 1 Mechan safety switch and connections for the 2 button override station. When fitted correctly the buttons can be used to override the Mechan switch connected to the F2HO. Both buttons need to be pressed to override the connected Mechan switch. Releasing either button re-activates the switch.
| Technical Specifications | |
|---|---|
| Construction | Grey PC-GF |
| Indication | Guard Status LED and Volt Free Contact |
| IP Rating | Housing IP30, Terminals IP20 |
| Weight | na |
| Mounting | 35mm DIN Rail |
| Power Consumption | na |
| Cable / Connector | Screw Terminals |
| Coding | Electronic, Generic code |
| Input | 1 Electronic Safety Switch + Limited Inch Button |

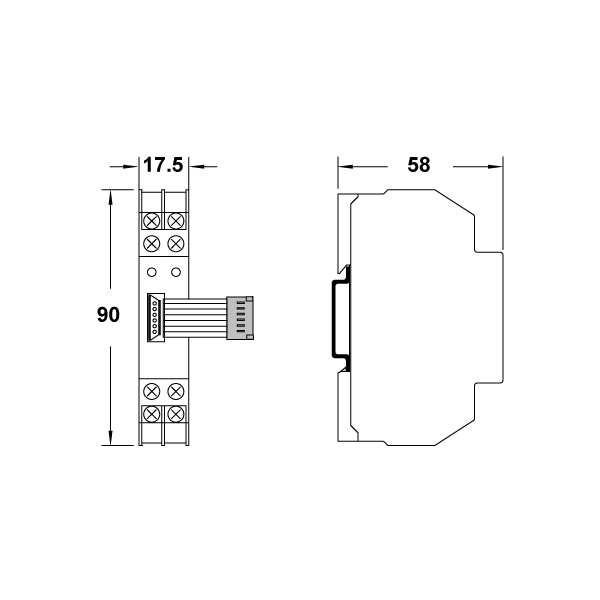

| Dimensions of Control Unit (mm) | 17.5 x 90 x 58mm |
| Environmental Specifications | |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| Safety Related Data | |
| PL in accordance with EN ISO 13849-1 | na |
| SIL CL in accordance with EN IEC 62061 | na |
| PFHd in accordance with EN IEC 62061 | na |
| PFH | na |
| B10d | na |
| MTTFd | na |
| TM | na |
| DC | na |
| SFF | na |
| Notes | |
As part of an F Series system | |
| File Title | File Name | Download File |
|---|---|---|
| 327 400 ID Iss5 Mechan F Series Install Guide | 327-400-ID-Iss5-Mechan-F-Series-Install-Guide.pdf | PDF (949 KB) |
| MECHAN F-SERIES 2 HAND OVERRIDE INSTALLATION GUIDE | 329-000v1-MECHAN-F2HO-INSTALLATION-GUIDE.pdf | PDF (83 KB) |
