Enclosure:
Housing IP30, Terminals IP20
Number of Safety Inputs:
2 Normally Closed
Number of Safety Outputs:
On GM1 Control Unit
Reset Options:
On GM1 Control Unit
Expandability:
Up to 20 Dual Channel Devices
Safety Rating:
CAT4, SIL3, PL-e (When Connected to GM1)

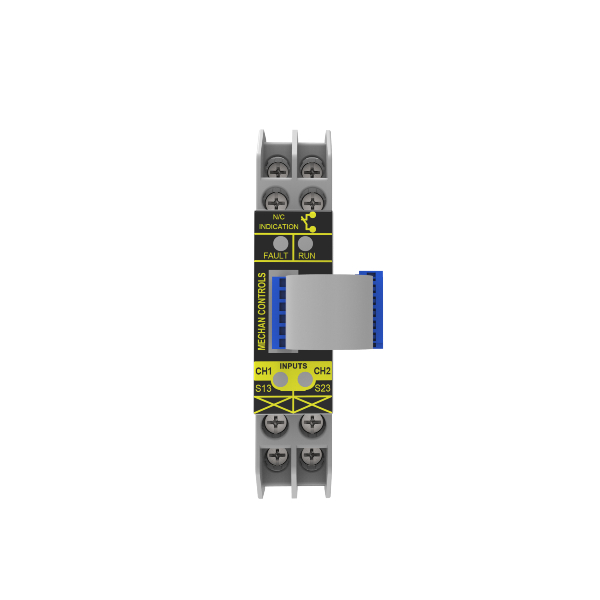

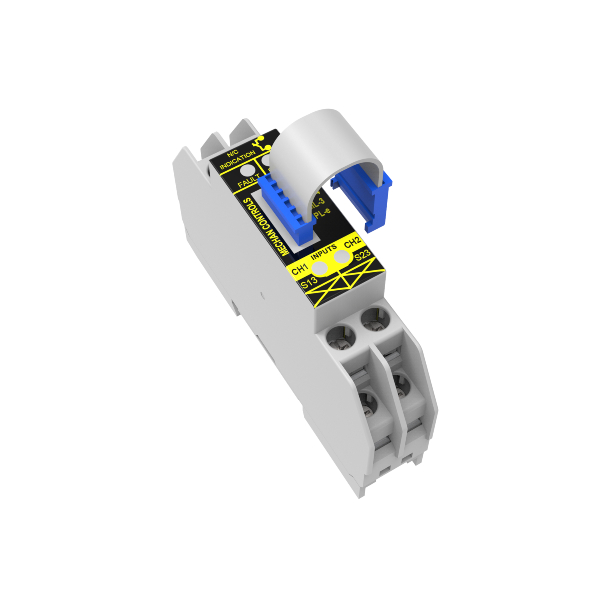

The GSM module gives the option to add additional emergency stop button or 2NC safety device to the GM1 control unit and maintain CAT4 SIL3 PLe performance. The GSM connects via a built in 6-way strap to the adjacent GM1/GSM module. The GSM accepts 2 closed contact inputs from either an MLG light curtain or OSSD safety switch. Indicator LED’s on the GSM provide diagnostic information along with volt free contact status indicator.
Technical Specifications | |
---|---|
Construction | Grey PC-GF |
Indication | LED's for Fault, Run, Input 1 and 2, OSSD 1 and 2 |
IP Rating | Housing IP30, Terminals IP20 |
Weight | NA |
Mounting | 35mm DIN Rail |
Supply Voltage Options | FROM GM1 |
Power Consumption | NA |
Cable / Connector | SCREW TERMINALS |
Input | 2 OSSD |
Dimensions of Control Unit (mm) | 17.5 x 90 x 58mm |
Environmental Specifications | |
Operating Temperature | 0°C to 45°C |
Storage Temperature | -20°C to 60°C |
Safety Related Data | |
PL in accordance with EN ISO 13849-1 | PL-e, CAT 4 |
SIL CL in accordance with EN IEC 62061 | SIL 3 |
PFHd in accordance with EN IEC 62061 | 6.0 x 10 -9 |
PFH | 6.52 x 10 -9 |
B10d | 2,000,000 |
MTTFd | High > 100 Years ( Based on usage rate of 360 Days |
TM | 20 years |
DC | 99% |
SFF | 99.50% |
Notes | |
AS PART OF AN GM1 SYSTEM |
File Title | File Name | Download File |
---|---|---|
330 402 Iss0 GM1 and GSM Installation Guide | 330-402-Iss0-GM1-and-GSM-Installation-Guide.pdf | PDF (2.5 MB) |
