Approvals
Housing:
M40 / RED ABS / Resin Encapsulated
Contacts:
2NO + 1NC (with door open)
Contact Rating:
400mA 24VDC
Coding:
Magnetically Coded
Indication:
No Indication
Ingress Protection Rating:
IP67 and IP69K

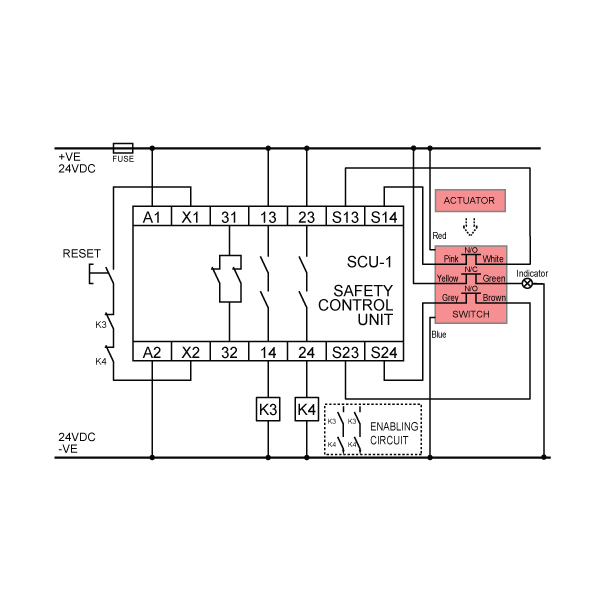

The HE safety switches have up to 2 x N/O + 1 N/C bidirectional solid state outputs. When installed on a machine guard, power is applied, and the switch and actuator are within the specified operating range, the N/O Outputs will be closed, the N/C Output will be open.

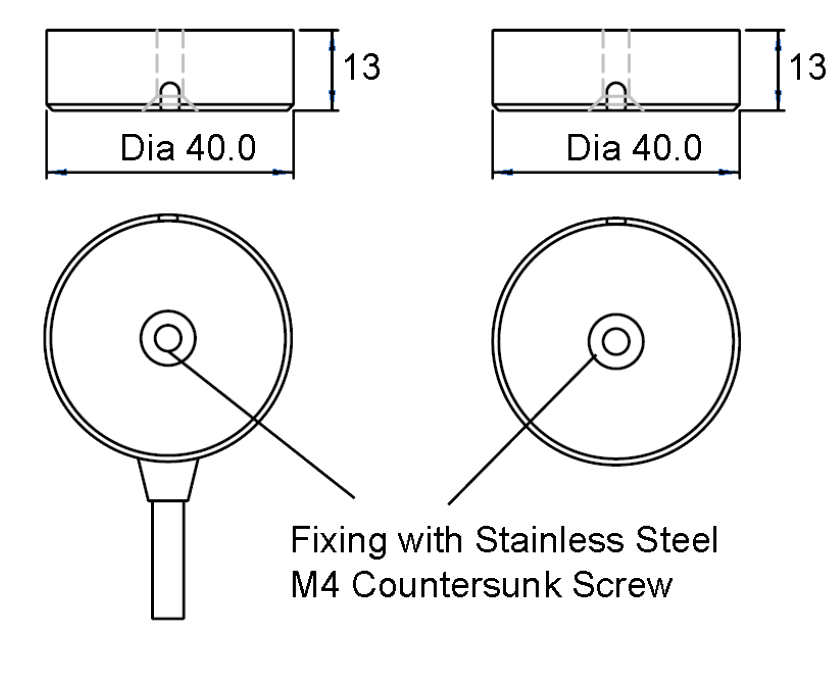

The HEM40 safety switches are fully encapsulated into a RED ABS 40mm barrel housing and available with 6 metre pre-wired cable. With a 7mm switching distance the actuator can approach the switch from most angles. When the switch is closed the targets on the printed face of the switch must be aligned.
Unlike other HE-Series products, the HEM40 does not feature LED indication.
| Technical Specifications | |
|---|---|
| Construction | RED ABS |
| IP Rating | IP67 / IP69K |
| Mounting | 4 x M4 Security Screws |
| Supply Voltage Options | 24vdc (+/- 15%) |
| Safety Output | Up to 2 x NO |
| Safety Output Rating | 24Vdc / 400mA |
| Auxilliary Output | Up to 1 x NC |
| Auxilliary Output Rating | 24Vdc / 400mA |
| Cable / Connector | Pre-wired |
| Cable Length | 3, 6 or 10 metre |
| Coding | Solid State, Coded Magnetic |
| Environmental Specifications | |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -25°C to +55°C |
| Safety Related Data | |
| PL in accordance with EN ISO 13849-1 | PL-e, CAT 4 |
| SIL CL in accordance with EN IEC 62061 | SIL 3 |
| PFHd in accordance with EN IEC 62061 | 3.62 x 10 -9 |
| PFH | 4.43 x 10 -9 |
| B10d | 2 x 10 -6 |
| MTTFd | High > 100 Years ( Based on usage rate of 360 Days |
| TM | 20 years |
| DC | 96.50% |
| SFF | 98.20% |
| File Title | File Name | Download File |
|---|---|---|
| 340 400 Iss 11 Mechan HE Series installation guide | 340-400-Iss-11-Mechan-HE-Series-installation-guide.pdf | PDF (3.7 MB) |
