MS7

Zoom

Approvals

Housing:
    Red ABS, Resin Encapsulated
Contacts:
    1NO + 1NC, 2NO + 1NC, 3NO (with door open)
Contact Rating:
    300mA 24VDC
Connection Type:
    Pre-Wired Cable, 4-Core / 6-Core
Operating Distance:
    7mm ON / 20mm OFF
Ingress Protection Rating:
    IP67 and IP69K

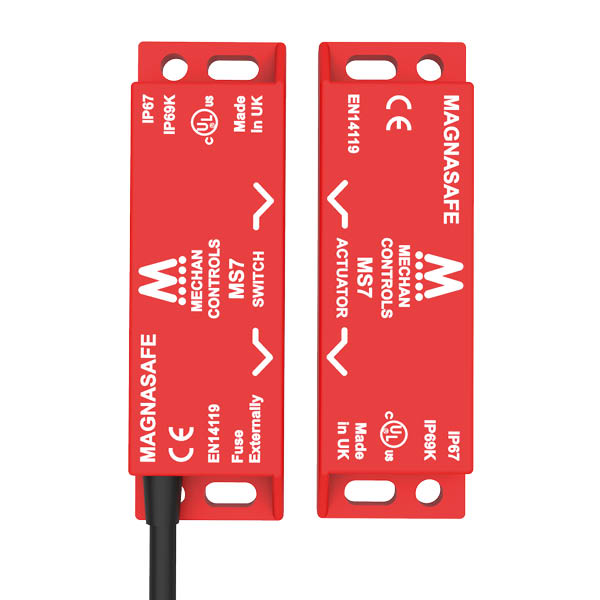

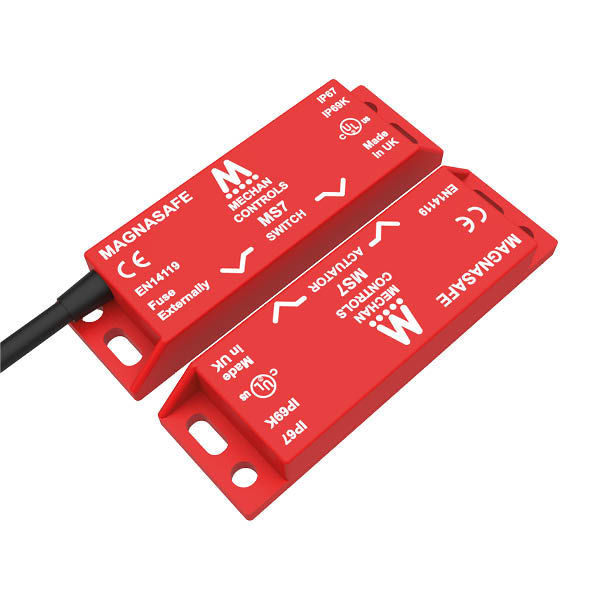

The MAGNASAFE MS7 safety switches are tamper resistant magnetic safety switches suitable for use in machine guarding applications. Encapsulated into red ABS housings, the MS7 safety switches are easy to install, tolerant to misalignment. The magnetic non-contact operation has a minimum 7 mm switching distance helping to ensure a long and trouble free operating life.

Quote Options Technical Specification Technical Drawings Downloads

Product Code	Description	Part No.	Quote options
357.006	MS7 / Plastic / 1NO + 1NC / DC / 03-Metre Pre-Wired (Switch and Actuator)	MS7-11-DC-03M	Qty: - +
357.000	MS7 / Plastic / 2NO + 1NC / DC / 03-Metre Pre-Wired (Switch and Actuator)	MS7-21-DC-03M	Qty: - +
357.002	MS7 / Plastic / 2NO + 1NC / DC / 05-Metre Pre-Wired (Switch and Actuator)	MS7-21-DC-05M	Qty: - +
357.001	MS7 / Plastic / 2NO + 1NC / DC / 06-Metre Pre-Wired (Switch and Actuator)	MS7-21-DC-06M	Qty: - +
357.003	MS7 / Plastic / 2NO + 1NC / DC / 10-Metre Pre-Wired (Switch and Actuator)	MS7-21-DC-10M	Qty: - +
357.005	MS7 / Plastic / 3NO / DC / 03-Metre Pre-Wired (Switch and Actuator)	MS7-30-DC-03M	Qty: - +
357.099	MS7-ACT (ACTUATOR ONLY)	MS7-ACT	Qty: - +

Download Step Drawing MS7-Plastic-Switch-Pre-Wired.STEP Download Step Drawing MS7-Plastic-Actuator.STEP

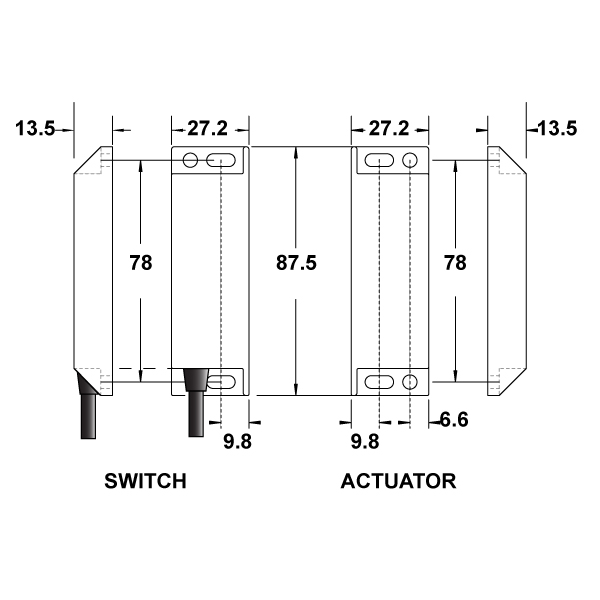

Dimensions (mm)

Dimensions in millimetres

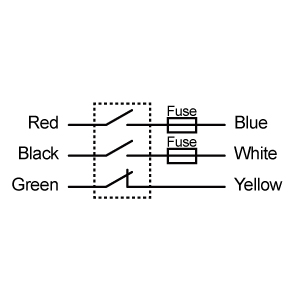

2 Normally Open Contacts + 1 Normally Closed

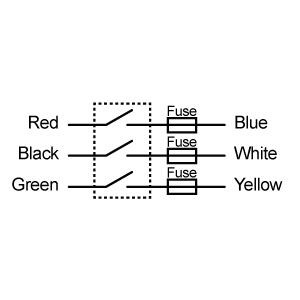

3 Normally Open Contacts

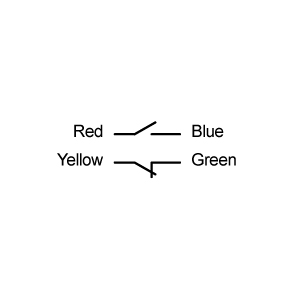

1 Normally Open Contact + 1 Normally Closed

Technical Specifications
Construction	Red ABS, Resin Filled
Indication	1 x Volt Free Contact
IP Rating	IP67 / IP69K
Weight	na
Mounting	4 x M4 Security Screws
Safety Output	Up to 3 x NO
Safety Output Rating	24Vdc / 300mA
Auxilliary Output	Up to 1 x NC
Auxilliary Output Rating	15W / 10VA
Cable / Connector	Pre-wired
Cable Length	3, 5, 6 or 10 metre
Coding	Magnet & Reed
Dimensions of Switch (mm)	87.5 x 27.2 x 13.5
Dimensions of Actuator (mm)	87.5 x 27.2 x 13.5
Environmental Specifications
Operating Temperature	-25°C to +55°C
Storage Temperature	-25°C to +55°C
Safety Related Data
PL in accordance with EN ISO 13849-1	na
SIL CL in accordance with EN IEC 62061	na
PFHd in accordance with EN IEC 62061	4.3 x 10-8 See Note 1
PFH	6.52 x 10-8
B10d	2,000,000
MTTFd	High > 100 Years ( Based on usage rate of 360 Days
TM	> 20 Years
DC	99%
SFF	98%
Notes
1) Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years
