Housing:
316 Stainless Steel, Resin Encapsulated

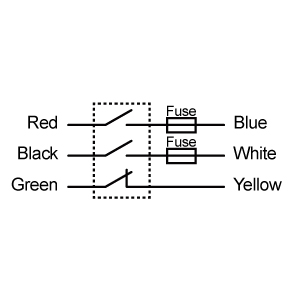

Contacts:
2NO + 1NC (with door open)
Contact Rating:
300mA 24VDC
Connection Type:
Pre-Wired Cable, 6 cores
Operating Distance:
30mm ON / 50mm OFF
Ingress Protection Rating:
IP67 and IP69K

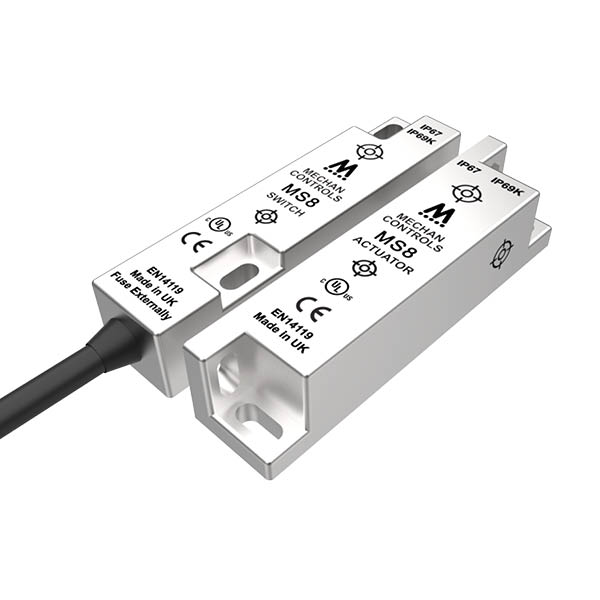

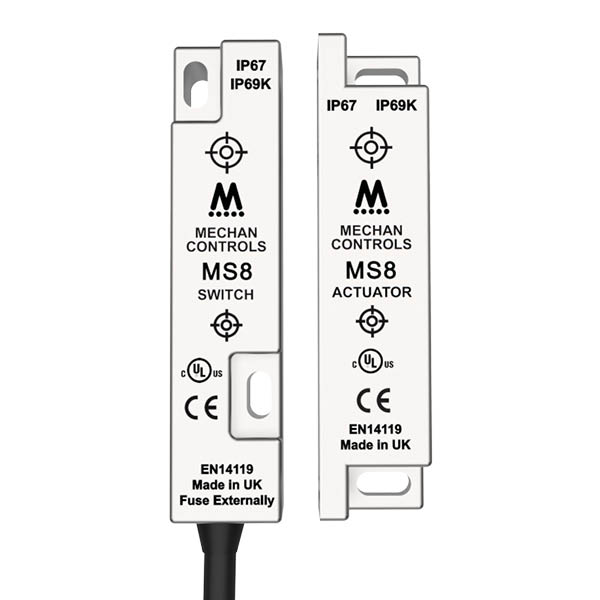

The MAGNASAFE MS8-SS non-contact safety switches are an industry standard, slim-line, space saving housing made from 316 Grade Stainless Steel. Fully Encapsulated, the MS8 safety switches have been designed with a larger than standard switching distance to ensure easy to install, tolerant to misalignment. The non-contact operation has a 30 - 50 mm switching distance helping to ensure a long and trouble free operating life where guarding alignment is an issue.

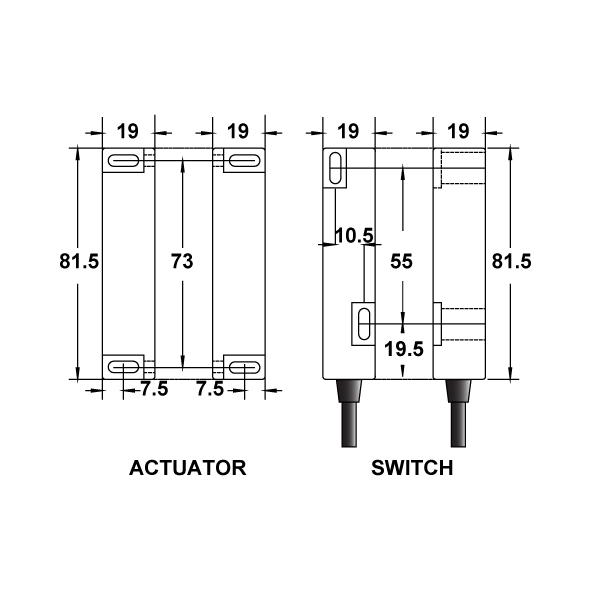

Download Step Drawing MS8-SS-Switch-Pre-Wired.STEP Download Step Drawing MS8-SS-Actuator.STEP
| Technical Specifications | |
|---|---|
| Construction | 316 Grade Stainless Steel |
| Indication | 1 x Volt Free Contact |
| IP Rating | IP67 / IP69K |
| Weight | na |
| Mounting | 4 x M4 Security Screws |
| Safety Output | Up to 2 x NO |
| Safety Output Rating | 24Vdc / 400mA |
| Auxilliary Output | Up to 1 x NC |
| Auxilliary Output Rating | 15W / 10VA |
| Cable / Connector | Pre-wired |
| Cable Length | 3, 5 or 10 metre |
| Coding | Magnet & Reed |
| Dimensions of Switch (mm) | 81.5 x 19 x 19mm |
| Dimensions of Actuator (mm) | 81.5 x 19 x 19mm |
| Environmental Specifications | |
| Operating Temperature | -25°C to 55°C |
| Storage Temperature | -20°C to 60°C |
| Safety Related Data | |
| PL in accordance with EN ISO 13849-1 | na |
| SIL CL in accordance with EN IEC 62061 | na |
| PFHd in accordance with EN IEC 62061 | 4.3 x 10-8 See Note 1 |
| PFH | 6.52 x 10-8 |
| B10d | 2,000,000 |
| MTTFd | High > 100 Years ( Based on usage rate of 360 Days |
| TM | > 20 Years |
| DC | 99% |
| SFF | 98% |
| Notes | |
1) | |
| File Title | File Name | Download File |
|---|---|---|
| 350 403 Iss7 MS8 MS8 D Installation Guide | 350-403-Iss7-MS8-MS8-D-Installation-Guide.pdf | PDF (927 KB) |
| MS8-STAINLESS-STEEL-SWITCH-PRE-WIRED-3D | MS8-SS-Switch-Pre-Wired.STEP | STEP (268 KB) |
| MS8-STAINLESS-STEEL-Actuator-PRE-WIRED-3D | MS8-SS-Actuator.STEP | STEP (179 KB) |
