OSSG-SS

Housing:
    316 Stainless Steel, Resin Encapsulated
Contacts:
    2 OSSD + 1NC (with door open)
Contact Rating:
    2Amp - 24VDC
Coding:
    Uniquely Coded, RFID
Indication:
    Dual RGB (Advanced Diagnostics)
Ingress Protection Rating:
    IP67 and IP69K

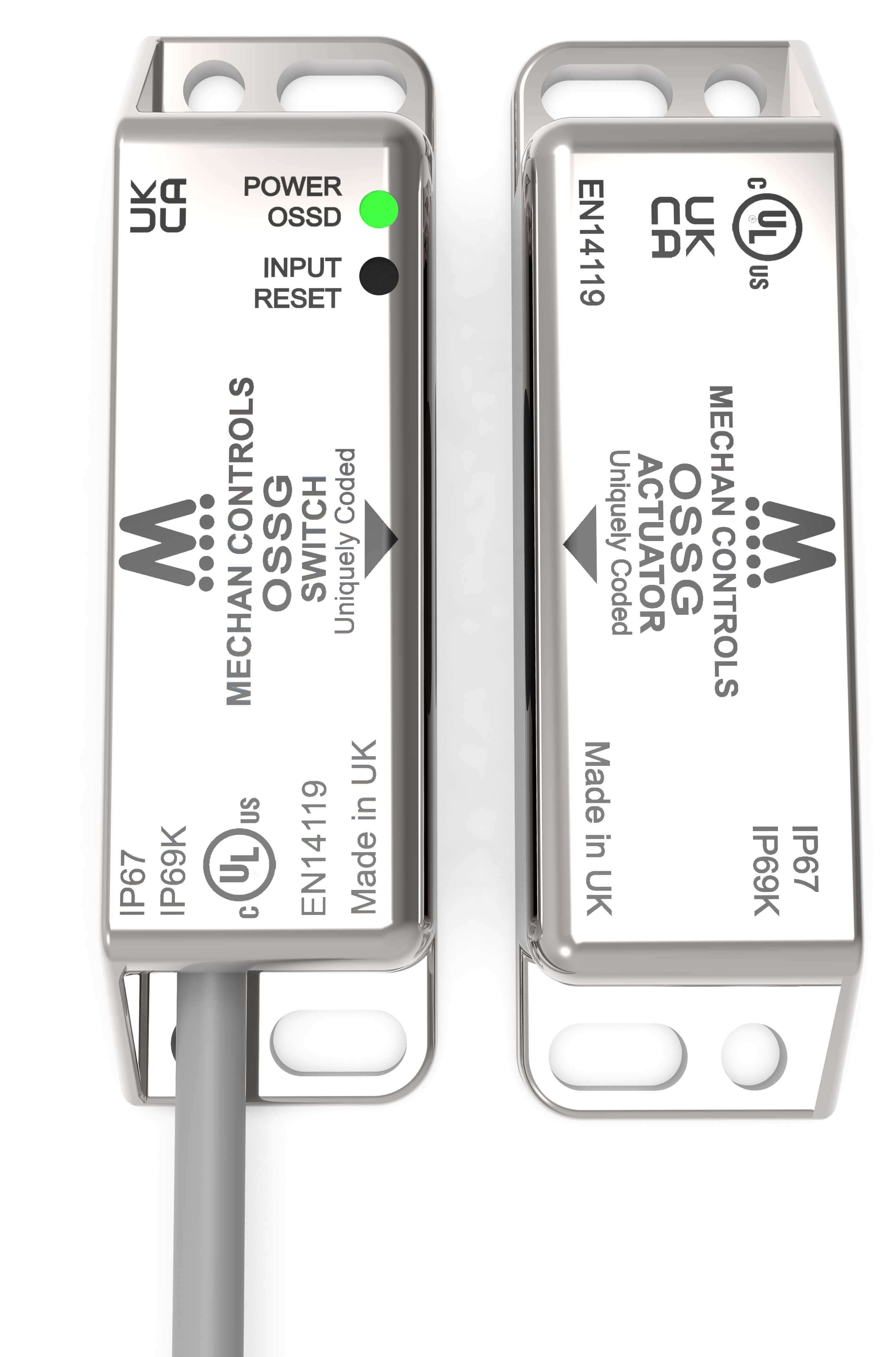

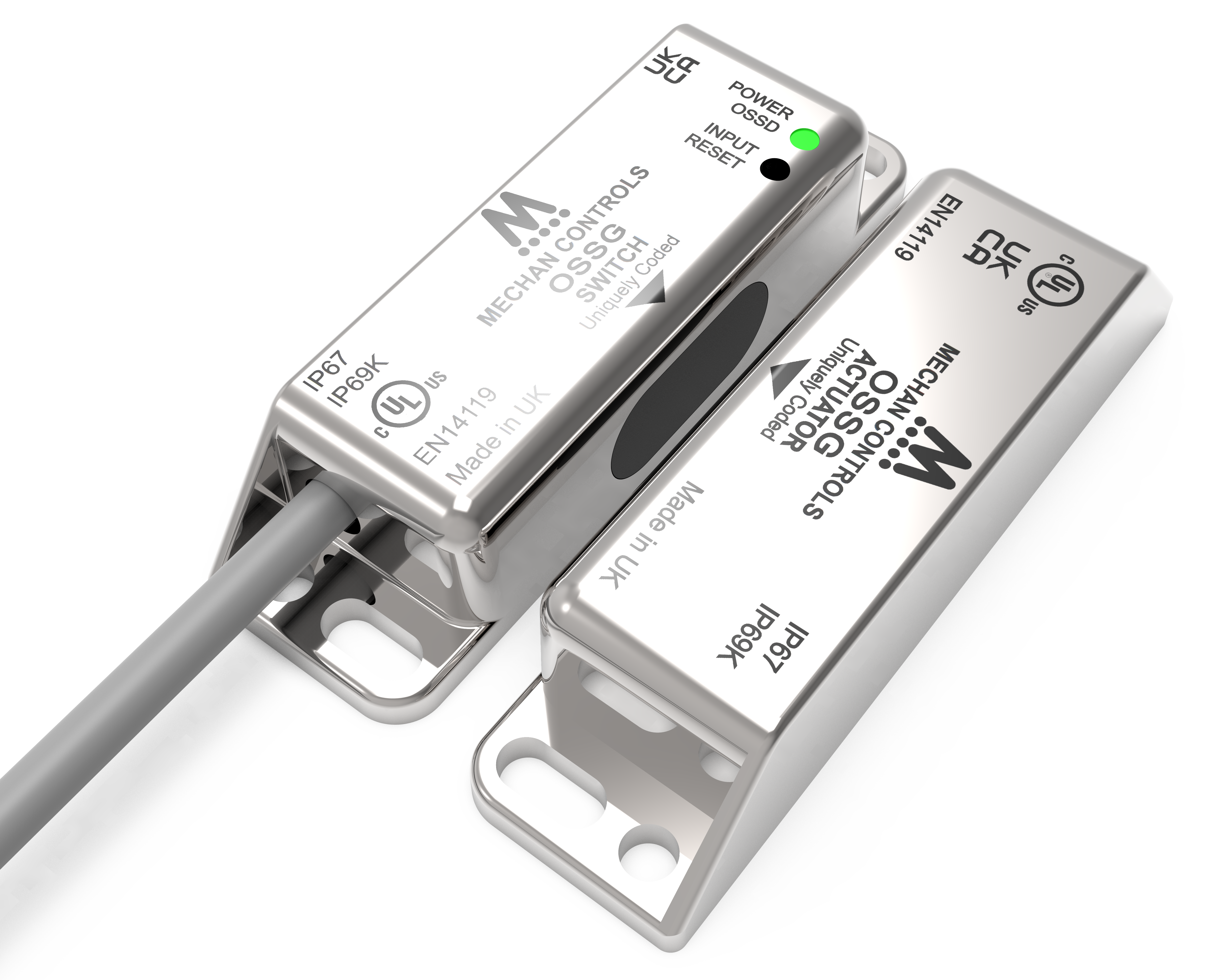

OSSG are standalone, non-contact RFID safety switches. With 2 OSSD safety outputs and 1NC contact, capable of switching 2A at 24Vdc. The uniquely coded RFID has a possible 4 billion code combinations and the OSSD outputs are suitable for series connection up to 30off, maintaining PL-e.

The OSSG includes dual RGB LEDs for advanced on-switch diagnostics and the overhanging design improves visibility in awkward mounting positions. The OSSG safety switches are available with 3, 6 or 10 metre pre-wired cables which are fully sealed and suitable for use in most wet / harsh environments.

The O-Type switches can be used with a fea­ture called EDM (external device monitor­ing). This means you can monitor the state of contactors or safety relays in order to detect failure of the external device eliminating the need for a safety monitoring device.
