SSR

SSR Zoom
SSR SSR SSR

Approvals

CE Approved

Housing:
    Blue ABS, Resin Encapsulated
Contacts:
    2NO + 1NC (with door open)
Contact Rating:
     2A - 24Vdc & 230Vac
Coding:
    Single Code, RFID
Indication:
    Guard Status Indication
Ingress Protection Rating:
    IP67 and IP69K

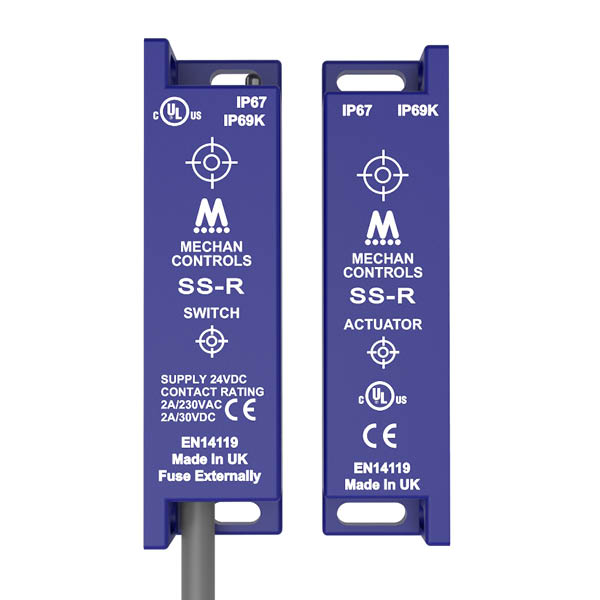

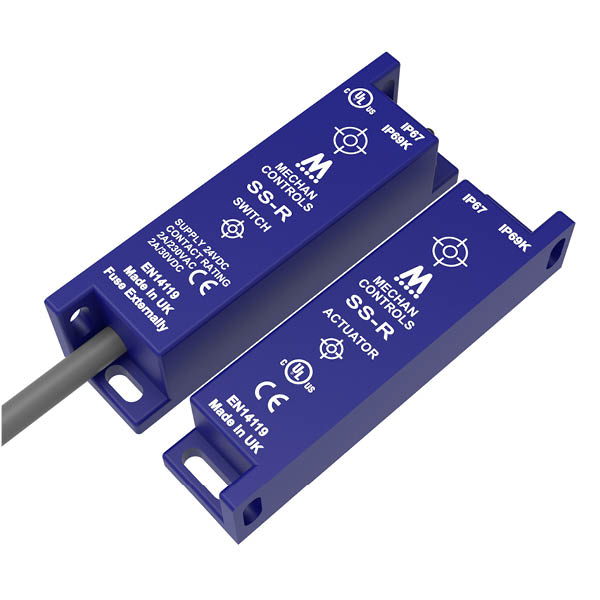

The SS-R are standalone RFID, non-contact, safety switches. With 2NO + 1NC contacts, capable of switching 2A at 30Vdc or 230Vac.

With tamper resistant, RFID switching, the SS-R are suitable for use with most safety relays. A dual colour, built in LED, helps the operator in speedy fault diagnosis. The SS-R safety switches are available with 3, 5, 6, 10 or 15 metre pre-wired cables which are fully sealed and suitable for use in most wet / harsh environments.

Product Code Description Part No. Quote options Added to Basket
362.000 SS-R / Plastic / 2NO + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator) SS-R-21-03M
Qty: - +

362.004 SS-R / Plastic / 2NO + 1NC / 24VDC / 05-Metre Pre-Wired (Switch and Actuator) SS-R-21-05M
Qty: - +

362.005 SS-R / Plastic / 2NO + 1NC / 24VDC / 06-Metre Pre-Wired (Switch and Actuator) SS-R-21-06M
Qty: - +

362.001 SS-R / Plastic / 2NO + 1NC / 24VDC / 10-Metre Pre-Wired (Switch and Actuator) SS-R-21-10M
Qty: - +

362.006 SS-R / Plastic / 2NO + 1NC / 24VDC / 15-Metre Pre-Wired (Switch and Actuator) SS-R-21-15M
Qty: - +

362.099 SS-R-ACT (ACTUATOR ONLY) SS-R-ACT
Qty: - +


Download Step Drawing SSR-PLASTIC-SWITCH-PRE-WIRED.STEP Download Step Drawing SSR-PLASTIC-ACTUATOR.STEP

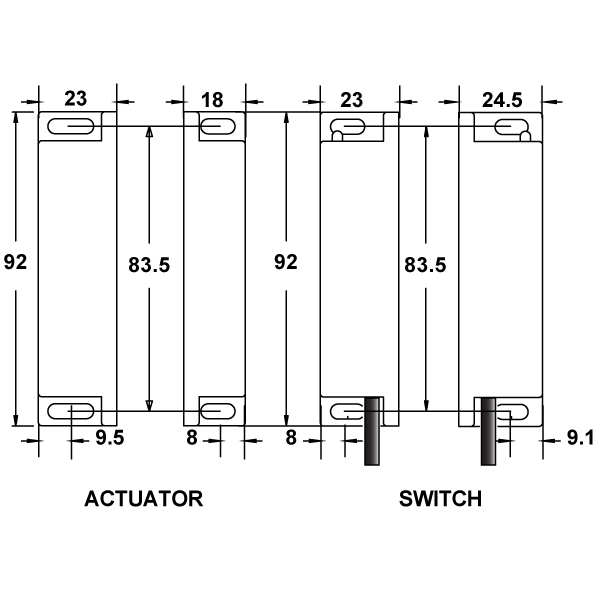

DIMENSIONS (MM)

Dimensions in millimetres

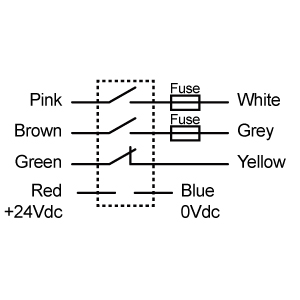

2 Normally Open Contacts + 1 Normally Closed

Technical Specifications
Construction Blue ABS, Resin Filled
Indication DUAL COLOUR LED
IP Rating IP67 / IP69K
Weight na
Mounting 4 x M4 Security Screws
Supply Voltage Options 24VDC
Power Consumption na
Safety Output Up to 2 x NO
Safety Output Rating 230Vac / 2A or 30Vdc / 2A
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 230Vac / 2A or 30Vdc / 2A
Cable / Connector Pre-wired
Cable Length 3, 5, 6 10 or 15 metre
Coding Electronic, Generic code
Dimensions of Switch (mm) 92 x 24.5 x 23mm
Dimensions of Actuator (mm) 92 x 23 x 18mm
Environmental Specifications
Operating Temperature -25°C to +55°C
Storage Temperature -25°C to +55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 4.3 x 10-8 See Note 1
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 99%
Notes

1)
Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years

File Title File Name Download File
360 400 Iss15 MECHAN S Type Installation Guide 360-400-Iss15-MECHAN-S-Type-Installation-Guide.pdf PDF (1.7 MB)
SSR-PLASTIC-SWITCH-PRE-WIRED-3D SSR-PLASTIC-SWITCH-PRE-WIRED.STEP STEP (253 KB)
SSR-PLASTIC-ACTUATOR-3D SSR-PLASTIC-ACTUATOR.STEP STEP (153 KB)
