Approvals
Housing:
316 Stainless Steel
Contacts:
2NC + 2NO or 3NC + 1NO
Technology:
Mechanical
Indication:
2 x Tension Indication Screens
Ingress Protection Rating:
IP69K

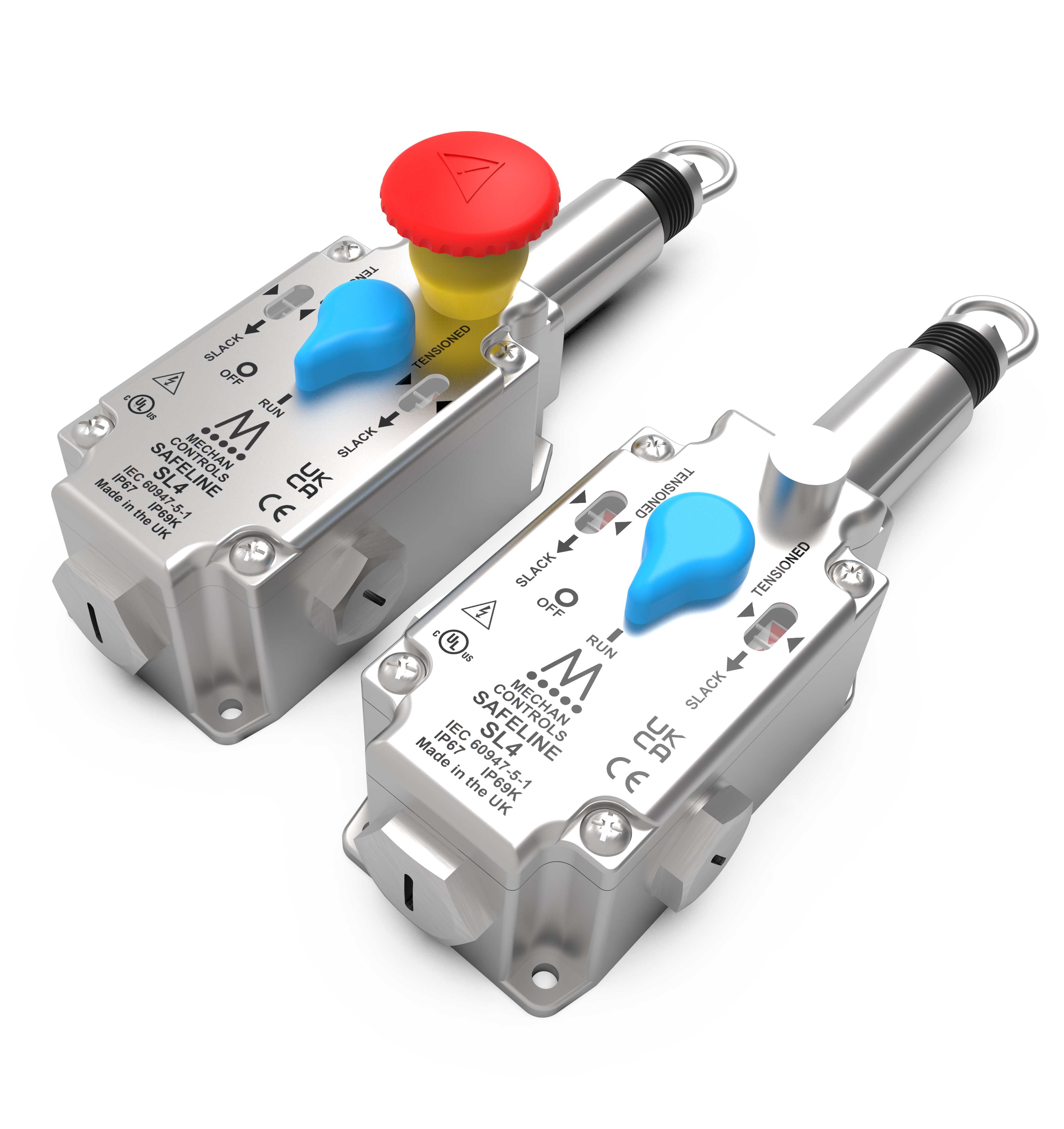

The stainless steel Safeline 4 cable/push button operated system can be installed where no physical guard is present on conveyors and provide constant emergency stop access. This switch is made from 316 stainless steel and is suitable for external use, applications where there are hygiene requirements and other situations where a level of corrosion proof is required.
| Technical Specifications | |
|---|---|
| Safety Contacts | 2 NC + 2 NO or 3 NC + 1 NO |
| Rated Insulation Voltage (Ui) | 500V |
| Withstand Voltage | 2500V |
| Thermal Current | 10A |
| Operational Rating | AC15 A300 240V. 3A / 120V 6A AC 24V. 2.5A DC Inductive |
| Rating | Utilisation Category: AC15 |
| Operating Range | <125N @ 300mm Deflection |
| Tension Force | 103N |

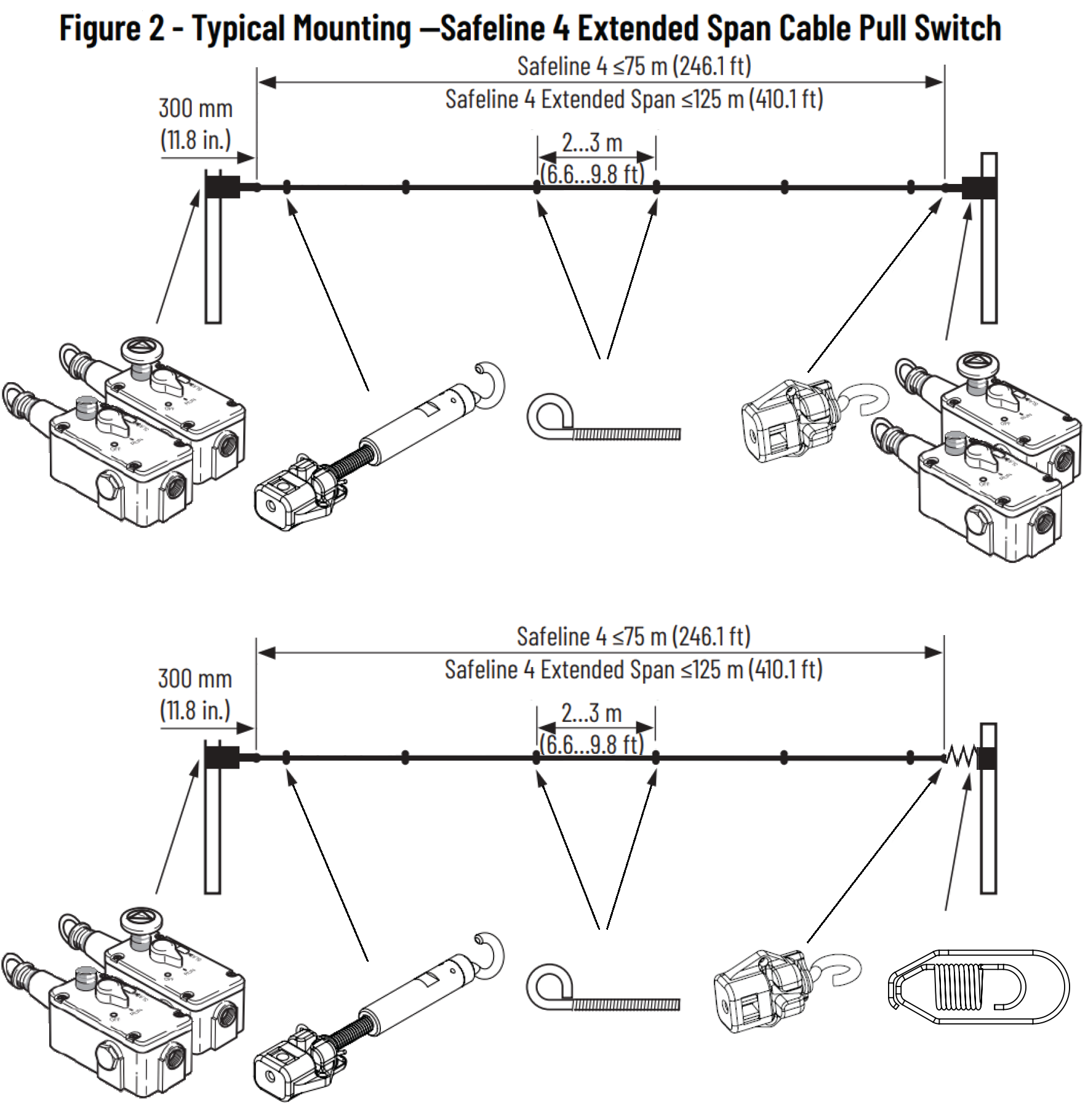

| Rope Spans | Up to 75m |
| Rope Supports | 2.3m |
| Reset Options | Blue Reset Switch |
| Construction | 316 Stainless Steel |
| Indication | Duel Tension Indication Windows |
| IP Rating | IP69K |
| Weight | 1.55kg |
| Mounting | 4 x M5 Security Screws |
| Environmental Specifications | |
| Operating Temperature | -25°C to +80°C |
| Safety Related Data | |
| PL in accordance with EN ISO 13849-1 | PL-e |
| SIL CL in accordance with EN IEC 62061 | SIL 3 |
| PFHd in accordance with EN IEC 62061 | 1.12 x 10-9 |
| PFH | 1.1 x 15-9 |
| B10d | 2,000,000 |
| MTTFd | High > 385 Years (Based on usage rate of 360 Days/ |
| TM | >100 Years |
| DC | 99% |
| SFF | 99.5% |
| File Title | File Name | Download File |
|---|---|---|
| 314 400 Safeline SL4 Grabwire Installation Manual v17 | 314-400-Safeline-SL4-Grabwire-Installation-Manual-v17.pdf | PDF (4.2 MB) |
