SL4 Tensioning Kit

SL4 Tensioning Kit

SL4 Tensioning Kit

Approvals

The SafeLine 4 Tensioning Kit is the easy to install tensioning system for the SL4 Grabwire.
The Tensioning Kit comes as standard with:

5m - 75m of rope.
Patented Tensioner.
Eyelets (1 for every 2.5m of rope).
Open Hook.
Cable Clamp.
Anchor Plate.
Anchor Spring.

Quote Options Technical Specification Technical Drawings Downloads

Product Code	Description	Part No.	Quote options	Added to Basket
314.010	SafeLine4 / 5 Metre Tensioning Kit	SL4 Installation Kit 5M	Qty: - +
314.011	SafeLine4 / 10 Metre Tensioning Kit	SL4 Installation Kit 10M	Qty: - +
314.012	SafeLine4 / 15 Metre Tensioning Kit	SL4 Installation Kit 15M	Qty: - +
314.013	SafeLine4 / 20 Metre Tensioning Kit	SL4 Installation Kit 20M	Qty: - +
314.014	SafeLine4 / 30 Metre Tensioning Kit	SL4 Installation Kit 30M	Qty: - +
314.015	SafeLine4 / 50 Metre Tensioning Kit	SL4 Installation Kit 50M	Qty: - +
314.016	SafeLine4 / 75 Metre Tensioning Kit	SL4 Installation Kit 75M	Qty: - +

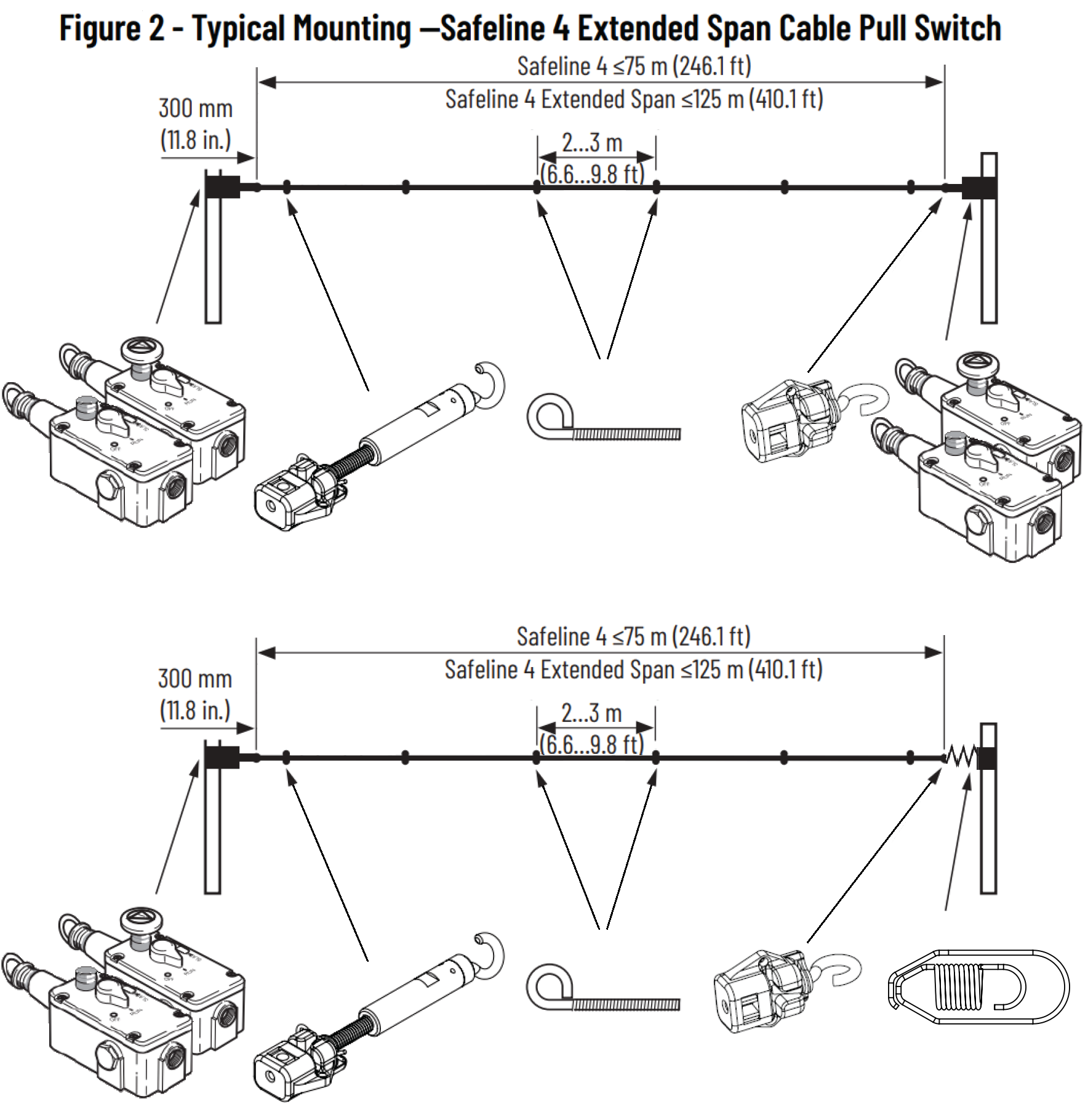

CONNECTION DRAWING 1

SL4 Connection Pic v7

Technical Specifications
Rope Spans	Up to 75m
Rope Supports	Every 2.5m
Construction	316 Stainless Steel & Polypropylene
Environmental Specifications
Safety Related Data

File Title	File Name	Download File
314 401 Safeline SL4 Tensioner Installation Manual v4	314-401-Safeline-SL4-Tensioner-Installation-Manual-v4.pdf	PDF (878 KB)
