Approvals
• Electronic safety switch
• Enhanced EMC immunity
• Fully encapsulated, IP67
• Pre-wired, 5, 10, 15 metre cable (Max 100m)
• Built in 20mm brass thread conduit gland

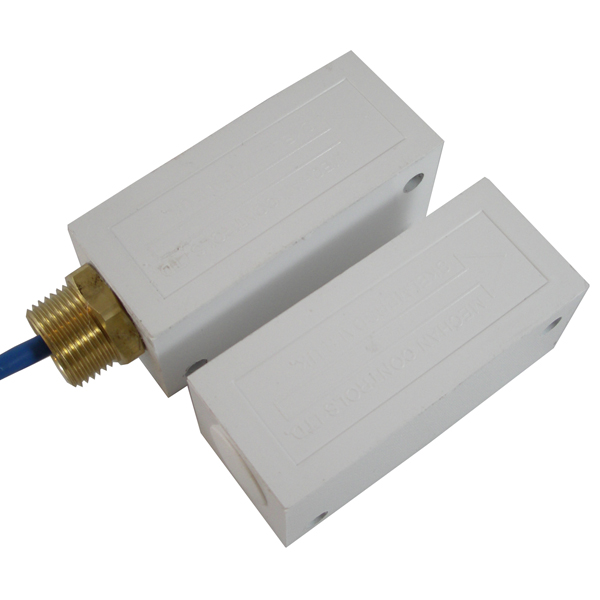

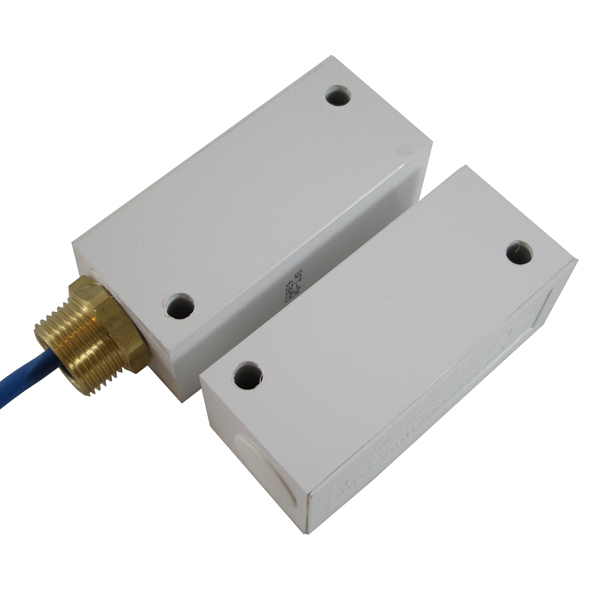

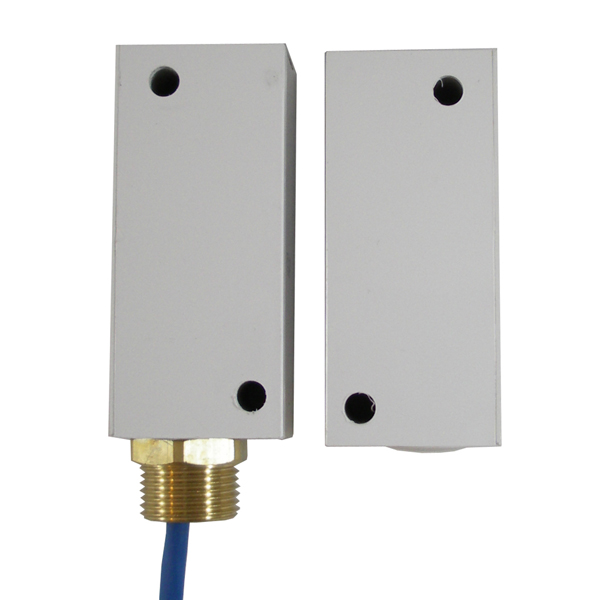

The SFMT electronic safety switches are the same robust design as the F-Type switches with additional protection for areas of high electronic noise pollution. Fully encapsulated into white ABS housings, with 6mm fixing holes directly through the body of the switch and a consistent 10mm switching even when mounted on metal frames, the S-Type safety switches offer the same ease of fitting and long term reliability.
| Technical Specifications | |
|---|---|
| Power Consumption | na |
| Cable / Connector | Pre-wired |
| Cable Length | 5/10 15 metre longer to order |
| Coding | Electronic, Generic code |
| Reset Options | At control unit |
| Indication | At control unit |

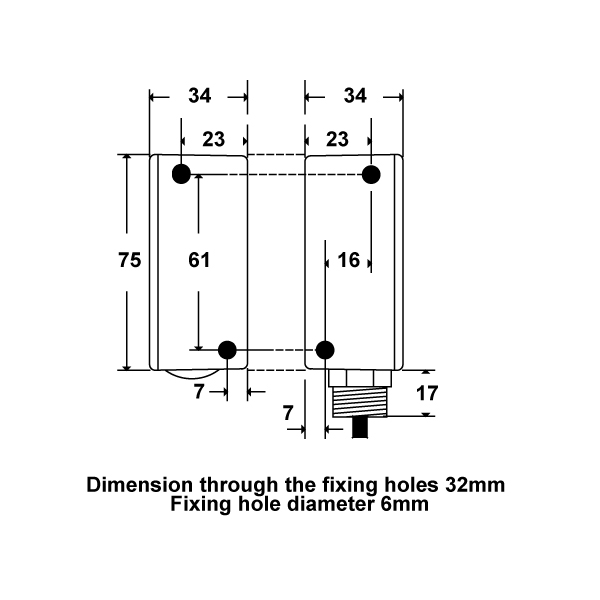

| Dimensions of Switch (mm) | 75 x 34 x 32mm |
| Dimensions of Actuator (mm) | 75 x 34 x 32mm |
| Weight | na |
| IP Rating | IP67 |
| Construction | White ABS, Resin Filled |
| Mounting | 4 x M6 Bolts |
| Environmental Specifications | |
| Operating Temperature | -25°C to 55°C |
| Storage Temperature | -25°C to 55°C |
| Safety Related Data | |
| PL in accordance with EN ISO 13849-1 | PL-e, CAT 4 |
| SIL CL in accordance with EN IEC 62061 | SIL 3 |
| PFHd in accordance with EN IEC 62061 | 6.0 x 10 -9 |
| PFH | 6.52 x 10 -9 |
| B10d | 2,000,000 |
| MTTFd | High > 100 Years ( Based on usage rate of 360 Days |
| TM | 20 years |
| DC | 99% |
| SFF | 99.50% |
| Notes | |
As part of an F Series system | |
| File Title | File Name | Download File |
|---|---|---|
| 327 400 ID Iss7 Mechan F Series Install Guide | 327-400-ID-Iss7-Mechan-F-Series-Install-Guide.pdf | PDF (1009 KB) |
