• 24VAC/DC supply
• LED diagnostics
• Dual channel output
• Automatic/manual-monitored reset

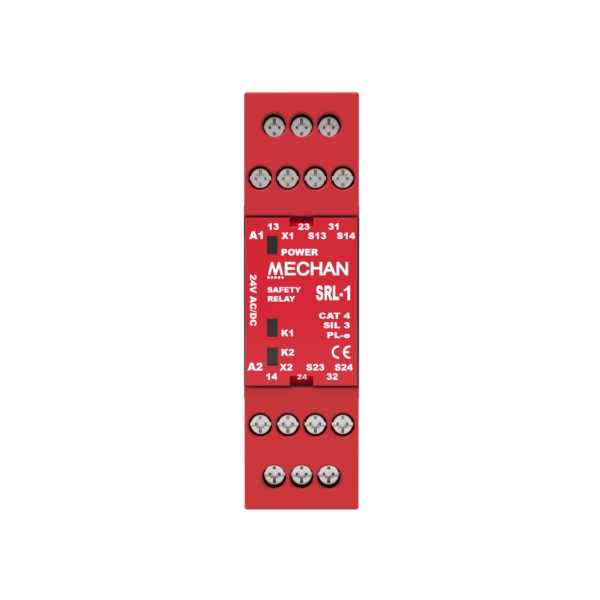

The SRL-1 Safety relay has dual channel, low voltage inputs, two normally open control contact outputs and one normally closed indication contact.

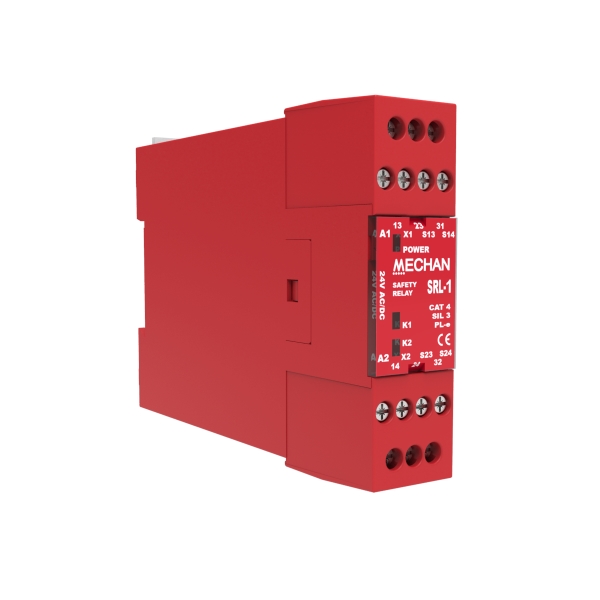

With LED indication to speed up fault finding and a slim 22.5mm DIN rail mounting enclosure the SRL-1 takes up minimum control panel space.
Designed for operation with the Mechan range of non-contact safety switches, the SRL-1 is also suitable for use with dual channel Emergency Stop buttons, or safety devices with 2 safety outputs e.g mechanical safety switches (locking or non-locking).
Depending on installation the SRL-1 can be used in CAT-4 / SIL 3 safety circuits.
| Technical Specifications | |
|---|---|
| Reset Options | Manual / Automatic |
| Construction | Red Polycarbonate housing and terminals |
| Indication | LED's for Power & Output K1 & K2 |
| IP Rating | Housing IP40, Terminals IP20 |
| Weight | NA |
| Mounting | 35mm DIN Rail |
| Supply Voltage Options | 24VAC/DC (+/- 15%) |
| Power Consumption | 3VA |
| Safety Output | 2 x NO |
| Safety Output Rating | 4A/230Vac; 2A/24Vdc(Res.)@Cos=1 |
| Auxilliary Output | 1 x NC |
| Auxilliary Output Rating | 4A/230Vac; 2A/24Vdc(Res.)@Cos=1 |
| Input | UP TO 30 DEVICES |

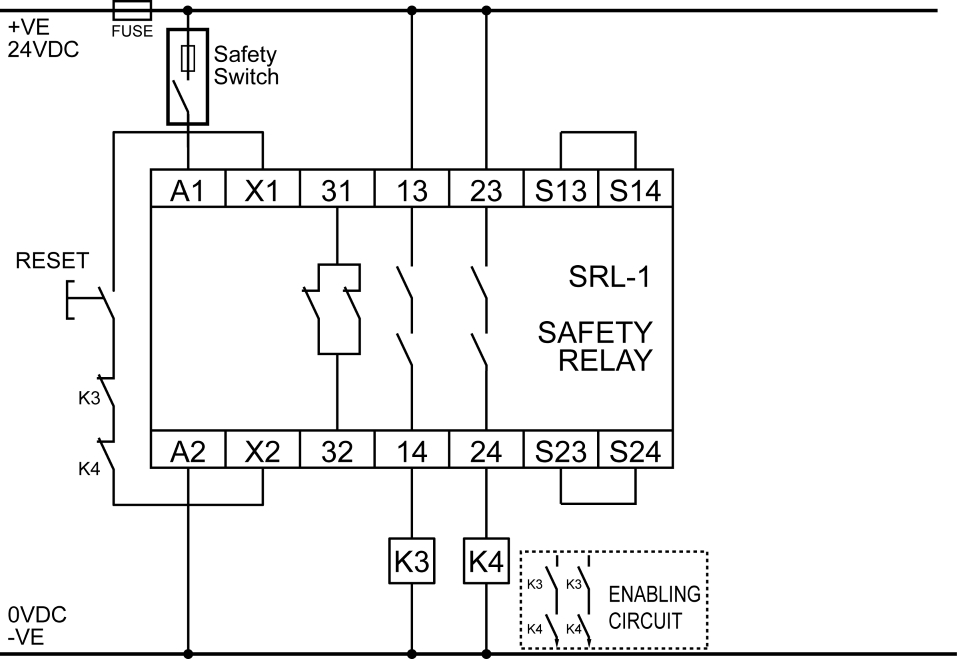

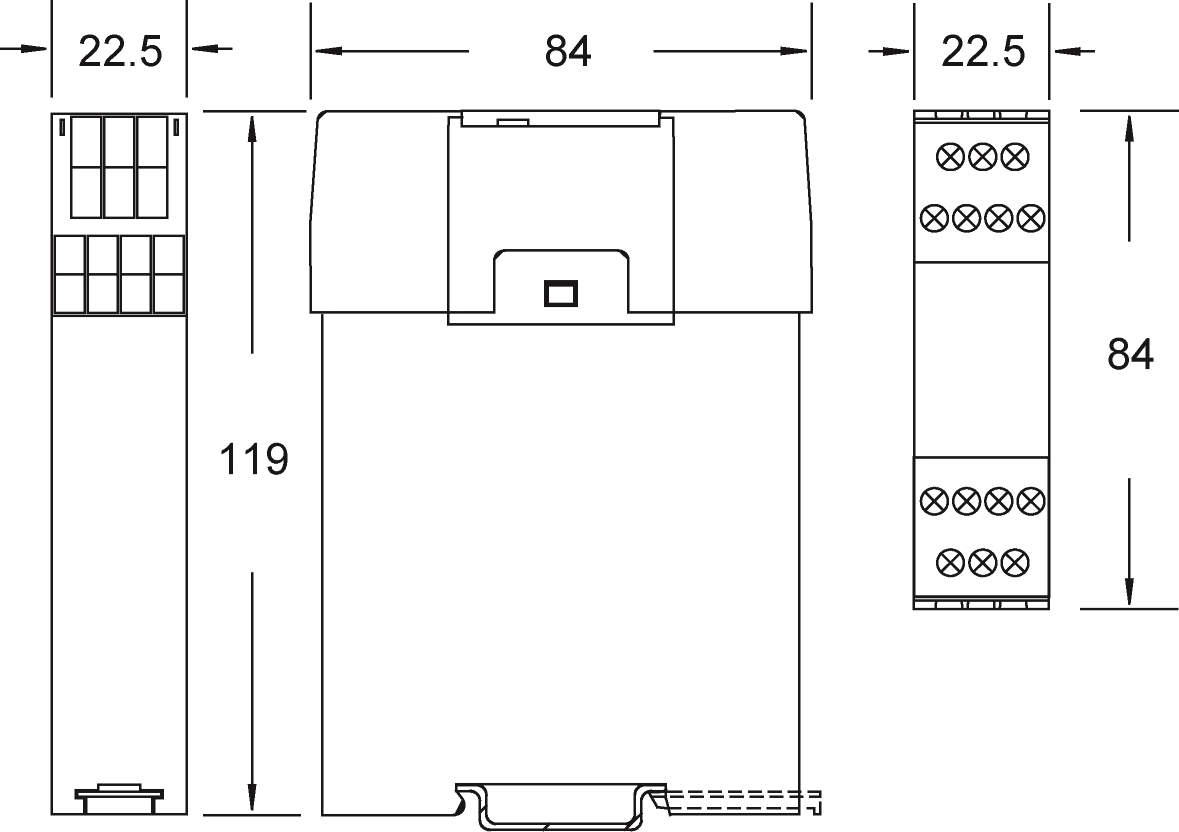

| Dimensions of Control Unit (mm) | 22.5 x 84 x 119mm |
| Environmental Specifications | |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -20°C to 60°C |
| Safety Related Data | |
| PL in accordance with EN ISO 13849-1 | PL-e, CAT 4 |
| SIL CL in accordance with EN IEC 62061 | SIL 3 |
| PFHd in accordance with EN IEC 62061 | 3.62 x 10 -9 |
| PFH | 4.43 x 10 -9 |
| B10d | 2 x 10 -6 |
| MTTFd | High > 100 Years ( Based on usage rate of 360 Days |
| TM | 20 years |
| DC | 96.50% |
| SFF | 98.20% |
| File Title | File Name | Download File |
|---|---|---|
| 307 400 IDv1 Mechan SRL1 installation guide | 307-400-IDv1-Mechan-SRL1-installation-guide.pdf | PDF (531 KB) |
